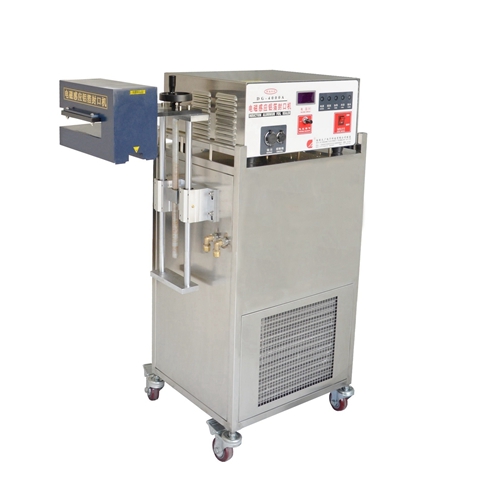

DG-4000A Automatic Induction Cap Sealer

item No : DG-4000A

Input:AC 220V,50HZ

Output:4000Wmax(Adjustable)

Sealing diameter:15mm to 55mm,or 30mm to 70mm,or 60mm to 140mm

Sealing speed:50 to 600 BPM

Material：304 Stainless Steel

Inquiry now

DETAILED DESCRIPTION

INQUIRY NOW

Water Cooling Automatic Induction Cap Sealer DG-4000A DG-3000A,SR-4000A,PPL-3000I

Inversed U shape channel bring more flexible for different closure style.
All electric device hermetic sealed in the cabin
lower EMI and resistant for dust in working area.
Power output adjustable against conveyor speed for perfect seal
Water shortage，Over heat, over current ,over load protected with lights indicate and error code.
Adjustable induction seal head’s height that suitable for different containers’ application.
304 stainless steel for easy to do clean & maintenance.

Specification:

Sealing Diameter:	Standard: 15 mm – 55 mm \|0.6″ – 2.2″. Option 1:30 mm – 70 mm \| 1.2″ – 2.8″. Option 2:60 mm – 140 mm \| 2.6″ – 5.5″
Efficiency:	400bottles per min (e.g.:PE bottle, Cap dia.32mm, Body Dia.38mm, H 40mm, distance from foils to heating board 2mm)
Power:	4 KWmax(Adjustable)
Voltage & Frequency:	220V/50Hz
Working By:	Automatic
Cooling By:	Water
Sealing Speed:	option \| 18 M / Min
Sealing Hight:	65-500mm \| 2.6″ – 19.6″
Machine Dimension:	Control Unit: L410 x W460 x H310mm \|L 16.1″ x W 18.1″ x H 12.2″ Induction head:L310 x W130 x H190mm \|L 12.2″ x W 5.12″ x H 7.5″ Cart: L 520mm x W 450mm xH 970mm \| L 20.5″ xW 17.7″ x H 38.2″
Shipping Dimension:	Package 1: L 1030 x W625 x H670mm \| L 40.5″ xW 24.61″ x H 26.4″ Package 2: L 1030 x W625 x H670mm \| L 40.5″ xW 24.61″ x H 26.4″
Net Weight:	78.00 kgs \| 172.0 lb.
Gross Weight:	135 Kgs \| 297.6 lb.
